CD1232A
Low Cost Microprocessor Monitoring Circuit
CD1232A
RoHS
Microprocessor Supervisory Circuit
Active   |  Production cycle：
Datasheet CAD Model Bulk inquiry
Products Selection
  • CD1232AS8
    CD1232AS8
    Price：$0.42

    Package：SOP-8

    Stock：80000

    Package Qty：Tape and Reel, 2500

    Price：
    10+   $0.42
    100+   $0.39
    1000+   $0.37
    2500+   $0.33

  • CD1232ADP8

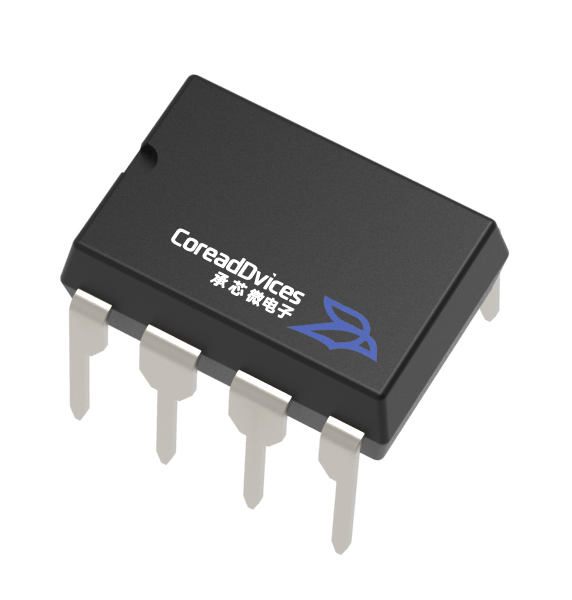

    CD1232ADP8
    Price：$0.42

    Package：DIP-8

    Stock：0

    Package Qty：Tube, 50

    Price：
    10+   $0.42
    100+   $0.39
    1000+   $0.37
    2500+   $0.33


Price：
Quantity：
Total：$0.00
Add to Cart
  • Threshold voltage:4.5V
  • Product type:Power-On Reset/Watchdog Timer
  • Monitoring voltage:1
  • Output:Push-Pull/Open Drain
  • Reset:Active High/Active Low
  • Reset timeout:250 ms Minimum


  • Rated supply voltage 5.0 V

  • Accurate 5% or 10% microprocessor power supply monitoring

  • Programming of watchdog timer overflow time

  • Generation of reset signals at power on for correct microprocessor start.The chip contains reference voltage source, analog comparator, Watchdog timer, circuit for monitoring power supply deviation accuracy


  • Microprocessor system

  • Portable devices

  • computer

  • controller

  • intelligent instrument

  • Automotive systems

  • Prevent damage caused by microprocessor failure


Description
CD1232 is designed to monitor power supply within the system of reset signal generation formicroprocessors. It is used in monitor systems for controlling var-ious processes and entities.
