CD108S085
RoHS
10 bits,low-power,8 channel analog-to-digital converter with rail to rail output
Active   |  Production cycle:
Products Selection
  • CD108S085TS
    CD108S085TS
    Price:$0.00

    Package:TSSOP-16

    Stock:1000

    Package Qty:Tape and Reel, 2500

    Price:
    10+   $0.00
    100+   $0.00
    1000+   $0.00
    2500+   $0.00

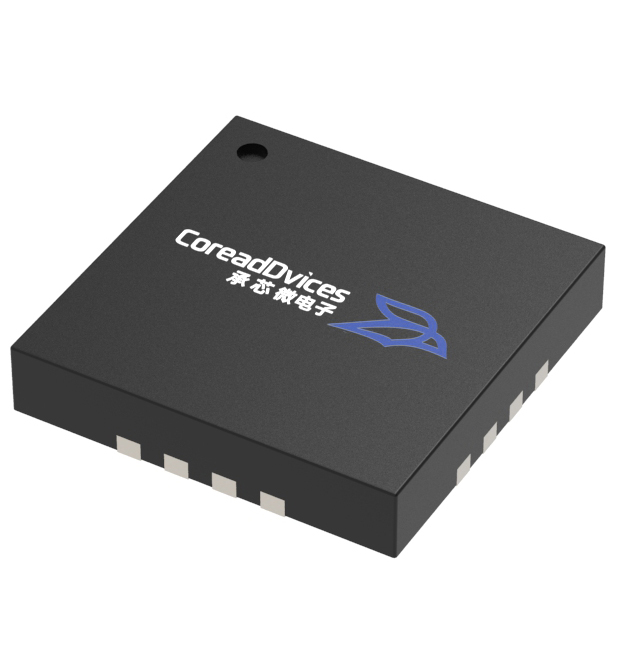

  • CD108S085QS
    CD108S085QS
    Price:$0.00

    Package:QFN-16

    Stock:0

    Package Qty:Tape and Reel, 2500

    Price:
    10+   $0.00
    100+   $0.00
    1000+   $0.00
    2500+   $0.00


Price:
Quantity:

Total:$0.00
Add to Cart
  • Resolution(Bits):10
  • Supply:2.7V ~ 5.5V
  • INL/DNL(LSB):±0.5,+0.08/-0.04
  • Channel:8
  • Output Type:Voltage-Buffered
  • Differential Output:N
  • Data interface:SPI/DSP
  • Setup time:6 µs


  • TSSOP16,QFN 16 pin package

  • I / O voltage: 1.8V - 5.5V

  • Core voltage:1.8V - 3.6V

  • Maximum 1MHz continuous data output rate

  • Temperature range - 40 ℃ - 125 ℃

  • Four wire SPI interface

  • Pulse generator

  • Clock calibration unit

  • Precise stop pulse enable window

  • The rising edge / falling edge is triggered separately or both rising edge and falling edge are triggered at the same time


  • Battery-Powered Instruments

  • Digital Gain and Offset Adjustment

  • Programmable Voltage and Current

  • Programmable Attenuators

  • Voltage Reference for ADCs

  • Sensor Reference Supply Voltage

  • Range Detectors


Description
CD128S085/CD108S085 is a high-precision and highly integrated digital to analog converter chip. A single chip integrates an 8-channel 12 / 10-bit voltage output digital to analog converter with output buffer drive. The chip is packaged with a smaller 16-pin TSSOP; The normal operational power supply voltage range is 2.7V ~ 5.5V; The output buffer drive can ensure that the output voltage is rail to rail, so as to ensure the maximum voltage output range; The power consumption is very low. Without load, the overall consumed current is only 540uA@3V ,600uA@5V. The three-wire serial interface is adopted, and the maximum clock can reach 40MHz. It allows very flexible configuration and is compatible with the current common SPI ™, QSPI, MICROWIRE, DSP and other interface standards. It supports daisy chain working mode. A single interface can control multiple chips at the same time to ensure that multiple chips update their status at the same time. CD128S085/CD108S085 have two external reference voltage inputs, one for channels A to D and the other for channels E to H. Each reference voltage can be configured separately, allowing the input range to be 0.5V ~ VA, so as to ensure that the chip provides the widest possible dynamic output range. The 16 shift registers at the digital input controlled by the serial interface can easily control the working mode of the chip, including sleep output state and output update state. All channels can be updated individually or uniformly.The biggest feature of CD128S085/CD108S085 is that it supports both power on reset and power-off reset. The power on reset circuit ensures that when the power supply voltage rises to the effective voltage, the output of the digital to analog converter is 0V and remains in this state until a new state update command is received. When the chip power supply voltage drops below 2.7V, the power-off reset circuit resets the chip so that the output of the digital to analog converter is 0V, so as to avoid the impact of the non-0V output voltage of th
