CD2576DT Voltage regulator-承芯微-承芯微电子(北京)有限公司

Power Management

CD2576DT

Voltage regulator

Active | Production cycle：

Datasheet CAD Model Bulk inquiry

Products Selection

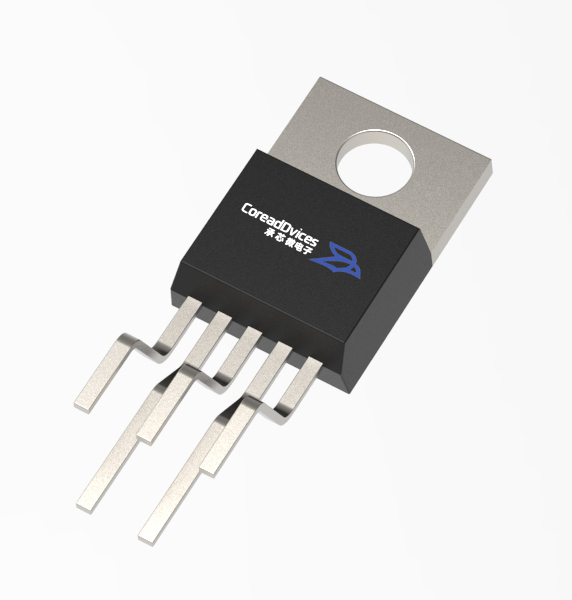

CD2576DS-ADJ
Price：$0.63

Package：TO-220-5

Stock：0

Package Qty：Tape and Reel, 46

Price：
10+   $0.63
100+   $0.60
1000+   $0.46
CD2576DT-ADJ
Price：$0.63

Package：TO-263-5

Stock：10000

Package Qty：Tape and Reel, 800

Price：
10+   $0.63
100+   $0.60
1000+   $0.46
CD2576DS-3.3
Price：$0.62

Package：TO-220-5

Stock：10000

Package Qty：Tape and Reel, 46

Price：
10+   $0.62
100+   $0.59
1000+   $0.44
CD2576DT-3.3
Price：$0.62

Package：TO-263-5

Stock：19000

Package Qty：Tape and Reel, 800

Price：
10+   $0.62
100+   $0.59
1000+   $0.44
CD2576DS-5.0
Price：$0.65

Package：TO-220-5

Stock：0

Package Qty：Tape and Reel, 46

Price：
10+   $0.65
100+   $0.60
1000+   $0.45
CD2576DT-5.0
Price：$0.65

Package：TO-263-5

Stock：10000

Package Qty：Tape and Reel, 800

Price：
10+   $0.65
100+   $0.60
1000+   $0.45
CD2576DS-12
Price：$0.63

Package：TO-220-5

Stock：0

Package Qty：Tape and Reel, 46

Price：
10+   $0.63
100+   $0.59
1000+   $0.44
CD2576DT-12
Price：$0.63

Package：TO-263-5

Stock：18000

Package Qty：Tape and Reel, 800

Price：
10+   $0.63
100+   $0.59
1000+   $0.44
CD2576DS-15
Price：$0.63

Package：TO-220-5

Stock：0

Package Qty：Tape and Reel, 46

Price：
10+   $0.63
100+   $0.59
1000+   $0.44
CD2576DT-15
Price：$0.63

Package：TO-263-5

Stock：0

Package Qty：Tape and Reel, 800

Price：
10+   $0.63
100+   $0.59
1000+   $0.44

Price：

Quantity：

Total：$0.00

Add to Cart

Input Voltage(Min)(V):4
Input Voltage(Max)(V):40
Output Voltage(Min)(V):3.3
Output Voltage(Max)(V):37
Output Current(Max)(A):3
Output channel(#):1
Switching Frequency(Min) (kHz):42
Switching Frequency(Max)(kHz):63
Quiescent Current (mA): 5

3.3 V, 5.0 V, 12 V, 15 V, and Adjustable Output Versions
Adjustable Version Output Voltage Range,1.23 to 37 V ±4%
Maximum Over Line and Load Conditions
Guaranteed 3.0 A Output Current
Wide Input Voltage Range
Requires Only 4 External Components
52 kHz Fixed Frequency Internal Oscillator
TTL Shutdown Capability, Low Power Standby Mode
High Efficiency
Uses Readily Available Standard Inductors
Thermal Shutdown and Current Limit Protection

Simple High–Efficiency Step–Down (Buck) Regulator
Efficient Pre–Regulator for Linear Regulators
On–Card Switching Regulators
Positive to Negative Converter (Buck–Boost)
Negative Step–Up Converters
Power Supply for Battery Chargers

Description

The CD2576 series of regulators are monolithic integrated circuits ideally suited for easy and convenient design of a step–down switching regulator (buck converter). All circuits of this series are capable of driving a 3.0 A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5.0 V, 12 V, 15 V, and an adjustable output version. These regulators were designed to minimize the number of external components to simplify the power supply design. Standard series of inductors optimized for use with the CD2576 are offered by several different inductor manufacturers. Since the CD2576 converter is a switch–mode power supply, its efficiency is significantly higher in comparison with popular three–terminal linear regulators, especially with higher input voltages. In many cases, the power

dissipated is so low that no heatsink is required or its size could be reduced dramatically. A standard series of inductors optimized for use with the CD2576 are available from several different manufacturers. This feature greatly simplifies the design of switch–mode power supplies. The CD2576 features include a guaranteed ±4% tolerance on output voltage within specified input voltages and output load conditions, and ±10% on the oscillator frequency (±2% over 0℃ to 125℃). External shutdown is included, featuring 80 ㎂(typical) standby current. The output switch includes cycle–by–cycle current limiting, as well as thermal shutdown for full protection under fault conditions.
