CDG733
Analog Switches Multiplexers
CDG733
RoHS
CMOS, 2.5 Ω, low voltage, three channel SPDT switch
Preview   |  Production cycle：
Datasheet CAD Model Bulk inquiry
Products Selection
  • CDG733ATS16
    CDG733ATS16
    Price：$0.00

    Package：TSSOP-16

    Stock：0

    Package Qty：Tape and Reel, 2500

    Price：

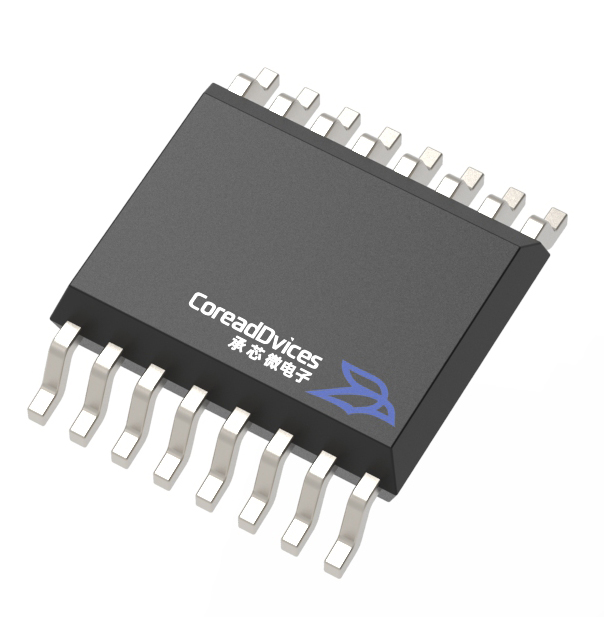

  • CDG733AQS16
    CDG733AQS16
    Price：$0.00

    Package：QSOP-16

    Stock：0

    Package Qty：Tape and Reel, 2500

    Price：


Price：
Quantity：
Total：$0.00
Add to Cart
  • Channel Configuration:（2 : 1）×3
  • Supply(min) (V):1.8

  • Supply(max) (V):5.5

  • Dual power supply voltage (typ) (V): ± 2.5

  • On ResistanceRon(typ)(Ohms):2.5
  • Flatness of on resistance(typ)(Ohms):0.5
  • Leakage switch(typ)(pA):10
  • Channel Isolation(dB):-72
  • Gain-Bandwidth Product (typ) (MHz): 160
  • Interface:I2C


  • Single power supply: 1.8 V to 5.5 V

  • ± 2.5 V dual power supply

  • On resistance: 2.5 Ω (typical value)

  • Low on resistance flatness: 0.5 Ω (typical value)

  • Leakage current: 100 pA

  • Switching time: 19 ns

  • Three channel single pole double throw switch

  • low power consumption

  • TTL/CMOS compatible


  • Data collection system

  • communication system

  • Alternative relay solutions

  • Audio and video switches


Description
CDG733 is a low-voltage CMOS device with three independent optional single pole double throw (SPDT) switches built-in. This device has low power consumption characteristics and operates with a single power supply of+1.8 V to+5.5 V/± 3 V dual power supply, making it very suitable for portable instrument applications powered by batteries. All channels adopt a first open and then close switch to prevent instantaneous short circuits when switching channels. This device provides EN input to enable or disable the device. When disabled, all channels are turned off.
