CDLM321
High Voltage General Purpose OpAmps
CDLM321
RoHS
1MHz, single operational amplifier
Active   |  Production cycle：
Datasheet CAD Model Bulk inquiry
Products Selection
  • CDLM321AST5
    CDLM321AST5
    Price：$0.10

    Package：SOT23-5

    Stock：5000

    Package Qty：Tape and Reel, 3000

    Price：
    10+   $0.10
    100+   $0.09
    1000+   $0.08
    3000+   $0.07

  • CDLM321ASC7

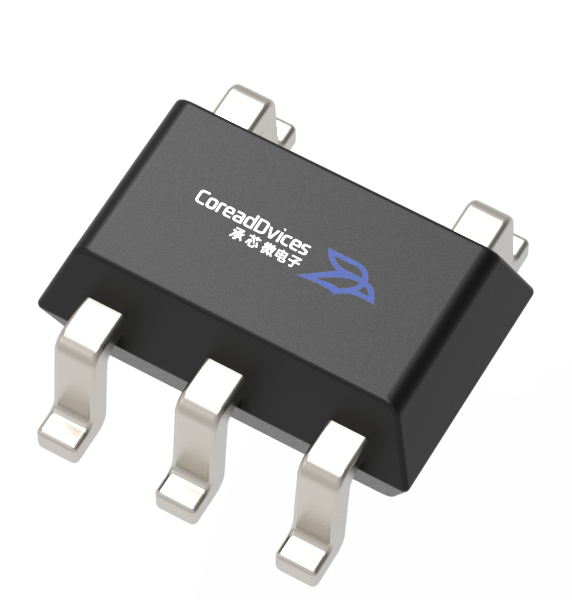

    CDLM321ASC7
    Price：$0.10

    Package：SC70-5

    Stock：0

    Package Qty：Tape and Reel, 3000

    Price：
    10+   $0.10
    100+   $0.09
    1000+   $0.08
    2500+   $0.06


Price：
Quantity：
Total：$0.00
Add to Cart
  • Number of Op-Amp Channels: 1 Channel
  • Supply Voltage (Min) (V): 3
  • Supply Voltage (Max) (V): 24
  • Gain-Bandwidth Product (Typ) (MHz): 1
  • Slew Rate (Typical Value) (V/μs): 0.4
  • Rail-to-Rail Input/Output: N/Y
  • Offset Voltage (Max @ 25℃) (μV): 5
  • Offset Voltage Temperature Drift (μV/℃): 7
  • Single Op-Amp Quiescent Current (Typ) (μA): 250
  • Input Noise Voltage Density (@1kHz) (nV/√Hz): --
  • Input Bias Current (pA): 45000
  • Open-Loop Voltage Gain (Typ) (dB): 100
  • Common-Mode Rejection Ratio (Typ) (dB): 90


  • Single-Supply Operation from +3V ~ +24V

  • Dual-Supply Operation from 1.5V ~ 12V

  • Gain-Bandwidth Product: 1MHz (Typ.)

  • Low Input Bias Current: 45nA ±(Typ.)

  • Low Offset Voltage: 5mV (Max.)

  • Quiescent Current: 250µA per Amplifier(Typ.)

  • Operating Temperature: -25°C ~ +80°C

  • Small Package:

    CDLM321 Available in SOT23-5 SC70-5 Packages

    CDLM358 Available in SOP-8 and MSOP-8 Packages

    CDLM324 Available in SOP-14 Package


  • Walkie-Talkie

  • Battery Management Solution

  • Transducer Amplifiers

  • Summing Amplifiers

  • Multivibrators

  • Oscillators

  • Portable Systems


Description
The CDLM358 family have a high gain-bandwidth product of 1MHz, a slew rate of 0.4V/μs, and a quiescent current of 250μA/amplifier at 5V. The CDLM358 family is designed to provide optimal performance in low voltage and low noise systems. The maximum input offset voltage is 5mV for CDLM358 family. The operating range iμs from 3V to 24V. The CDLM321 single is availμable in Green SOT-23-5 packages. The CDLM358 Dual is available in Green SOP-8 and MSOP-8 packages. The CDLM324 Quad is available in Green SOP-14 package.
