Low Noise OpAmps

CDV721

Low cost, low noise, rail to rail output, single channel operational amplifier

Active | Production cycle：

Datasheet CAD Model Bulk inquiry

Products Selection

CDV721AS8
Price：$0.21

Package：SOP-8

Stock：0

Package Qty：Tape and Reel, 2500

Price：
10+   $0.21
100+   $0.19
1000+   $0.15
3000+   $0.12
CDV721AST5
Price：$0.18

Package：SOT23-5

Stock：0

Package Qty：Tape and Reel, 3000

Price：
10+   $0.18
100+   $0.17
1000+   $0.15
3000+   $0.10
CDV721BST5
Price：$0.18

Package：SOT23-5

Stock：0

Package Qty：Tape and Reel, 3000

Price：
10+   $0.18
100+   $0.17
1000+   $0.15
3000+   $0.10
CDV721AMS8
Price：$0.22

Package：MSOP-8

Stock：0

Package Qty：Tape and Reel, 3000

Price：
10+   $0.22
100+   $0.20
1000+   $0.18
3000+   $0.14
CDV721ATDE6
Price：$0.30

Package：TDFN2×2-6

Stock：0

Package Qty：Tape and Reel, 3000

Price：
10+   $0.30
100+   $0.27
1000+   $0.22
3000+   $0.20
CDV721SAS8
Price：$0.30

Package：SOP-8

Stock：0

Package Qty：Tape and Reel, 2500

Price：
10+   $0.30
100+   $0.27
1000+   $0.22
3000+   $0.20

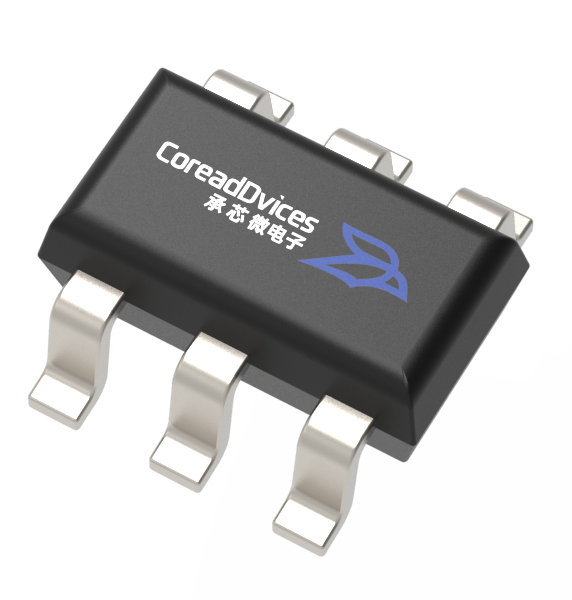

CDV721SAT6
Price：$0.30

Package：SOT23-6

Stock：0

Package Qty：Tape and Reel, 3000

Price：
10+   $0.30
100+   $0.27
1000+   $0.22
3000+   $0.20

Price：

Quantity：

Total：$0.00

Add to Cart

Channel: 1
Input Voltage Noise Density(@1kHz):9.5
Gain-Bandwidth Product(Typ)(MHz):10
Slew Rate(V/μs):7
Quiescent Current/Amplifier(Typ)(μA):1150
Supply(Min)(V):2.5
Supply(Max)(V):5.5
Rail to rail input/output:Y/Y
Offset Voltage(Max@25℃)(mV):2.5
Input Offset Voltage Average Drift(μV/℃):2.6
Input Bias Current(pA):1
Open-Loop Voltage Gain(Typ)(dB):96
Common-Mode Rejection Ratio(Typ)(dB):85

High Gain-Bandwidth: 10 MHz
Rail-to-Rail Input and Output, 0.9 mV (Typical VOS)
Input Voltage Range: -0.1 V to +5.6 V (Vs = 5.5 V)
Supply Voltage Range: +2.5 V to +5.5 V
Shutdown Function: CDV721S/CDV722S
Specified Temperature Up to +125 °C
Micro-Package Configuration: SOT23-5, SOT23-6

Sensor
Photodiode Amplification
Active Filter
Test Equipment
A/D Driver Converter

Description

The CDV72X families of products offer low voltage operation and rail-to-rail input and output, as well as excellent speed/power consumption ratio,providing an excellent bandwidth (10MHz)and slew rate of 7V/us. The op-amps are unity gain stable and feature an ultra-low input bias

current. The devices are ideal for sensor interfaces, active filters and portable applications.
The CDV721S, CDV722S include a shutdown mode. Under logic control, the amplifiers can be switched from normal operation to a standby current that is less than 1uA.The CDV72X families of operational amplifiers are specified at the full temperature range of −40°C to +125°C under single or dual power supplies of 2.5V to 5.5V.
