CD8336
Precision OpAmps
CD8336
RoHS
Low power, precision, zero drift, dual channel operational amplifier
Active   |  Production cycle：
Datasheet CAD Model Bulk inquiry
Products Selection
  • CD8336AS8
    CD8336AS8
    Price：$0.59

    Package：SOP-8

    Stock：23000

    Package Qty：Tape and Reel, 2500

    Price：
    10+   $0.59
    100+   $0.51
    1000+   $0.46
    3000+   $0.44

  • CD8336AMS8
    CD8336AMS8
    Price：$0.60

    Package：MSOP-8

    Stock：12000

    Package Qty：Tape and Reel, 3000

    Price：
    10+   $0.60
    100+   $0.52
    1000+   $0.48
    3000+   $0.45

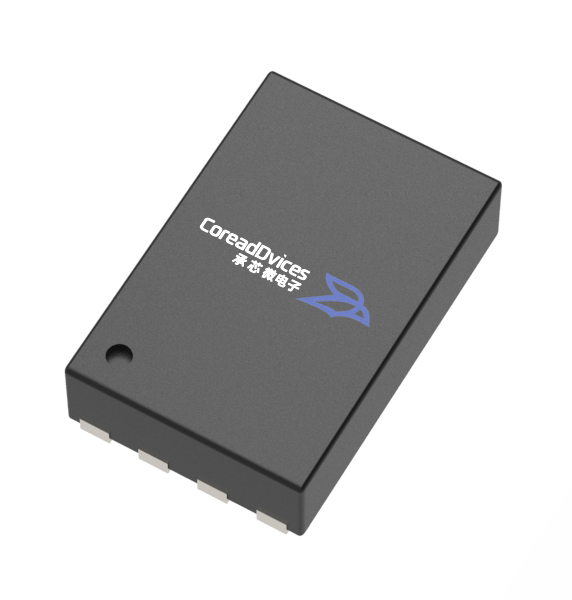

  • CD8336AND8
    CD8336AND8
    Price：$0.62

    Package：DFN-8

    Stock：1

    Package Qty：Tape and Reel, 3000

    Price：
    10+   $0.62
    100+   $0.53
    1000+   $0.49
    3000+   $0.46


Price：
Quantity：
Total：$0.00
Add to Cart
  • Channel:1
  • Offset Voltage : 10 uV
  • Input Bias Current:20 pA
  • Input Voltage Noise Density:70 nV/sqrt Hz
  • Supply: 2.7 V to 5.5 V
  • Gain Bandwidth Product: 350KHz
  • Slew Rate:0.2 V/μs
  • Common-Mode Rejection Ratio:110 dB
  • Output type: Rail-to-Rail


  • Single-Supply Operation from +1.8V ~+5.5V

  • Rail-to-Rail Input / Output

  • Gain-Bandwidth Product: 350KHz(Typ.@25℃)

  • LowInput BiasCurrent: 20pA(Typ.@25℃)

  • Low Offset Voltage: 10uV (Max. @25℃)

  • Quiescent Current: 25µA per Amplifier(Typ)

  • Operating Temperature: -40°C ~ +125℃

  • Zero Drift: 0.05µV/°C (Typ)

  • Embedded RF Anti-EMI Filter

  • Small Package:

  • CD8333 Available in SOT23-5, SC70-5 and SOP-8 Packages

  • CD8336Available in SOP-8, MSOP-8 and DFN-8 Packages

  • CD8339 Available in SOP-14 and TSSOP-14 Packages


  • Transducer Application

  • Temperature Measurements

  • Electronics Scales

  • Handheld Test Equipment

  • Battery-Powered Instrumentation


Description
The CD833X series amplifiers include CD8333, CD8336, and CD8339, which are single/dual/quad operational amplifiers, micro-power, zero-drift CMOS operational amplifiers, the amplifiers offer bandwidth of 350 kHz, rail-to-rail inputs and outputs, and single-supply operation from 1.8V to 5.5V. CD833X uses chopper stabilized technique to provide very low offset voltage (less than 10µV maximum) and near zero drift over temperature. Low quiescent supply current of 25µA per amplifier and very low input bias current of 20pA make the devices an ideal choice for low offset, low power consumption and high impedance applications. The CD833X offers excellent CMRR without the crossover associated with traditional complementary input stages. This design results in superior performance for driving analog-to-digital converters (ADCs) without degradation of differential linearity.
The CD8333 is available in SOT23-5, SC70-5 and SOP8 packages. And the CD8336 is available in SOP8, MSOP8 and DFN-8 packages. The CD8339 Quad is available inGreen SOP-14 and TSSOP-14 packages. The extended temperature range of -40℃ to +125℃ over all supply voltages offers additional design flexibility.
